| Modle: |

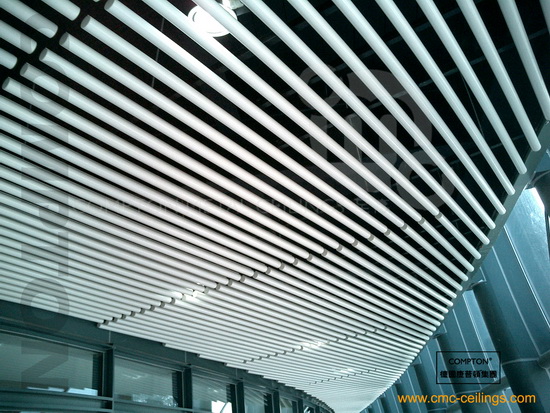

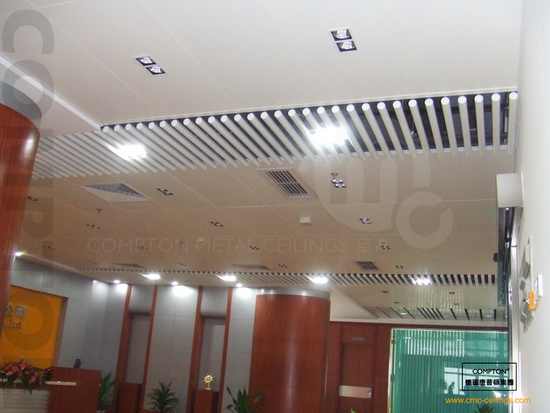

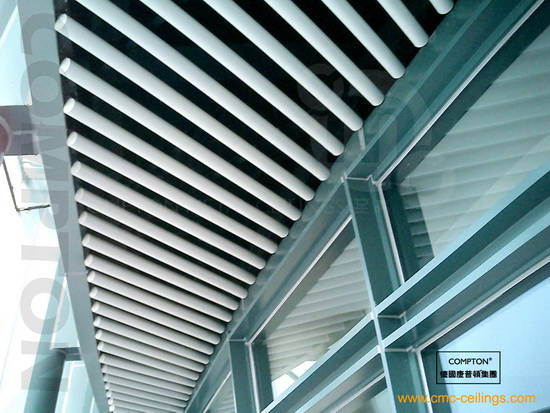

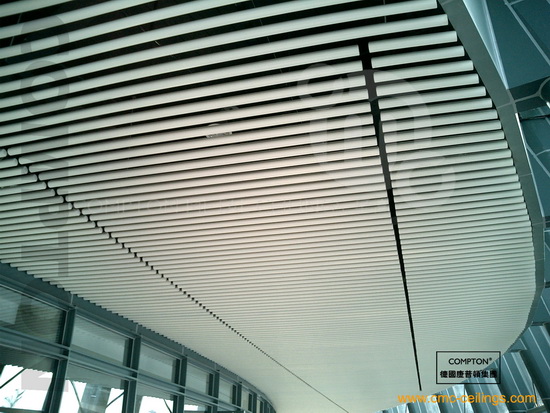

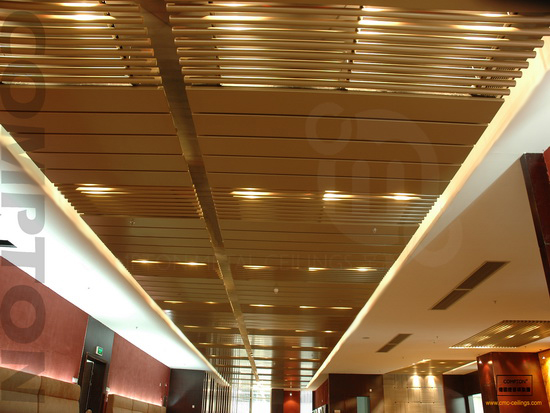

COMPTON-50 Tube Ceiling Series |
|
|
|
|
| description: |
Ceiling joist system is formed by C ceiling frame and special screw with square head and circular tube. Standard 40#C frame with modulus of 100mm and 120mm can cooperate with standard Luminaries and fire control improvements. It is accessible for maintenance.

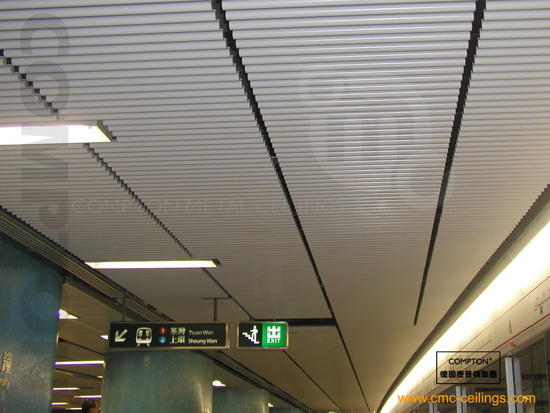

It is applicable for such crowded places as subway, airport, stations, shopping mall, corridors/passages, small conference rooms and open-style public places. |
| Keel: |
Dimension 30mmx40mmx30mm, 1.2mm thick, the material is black pre-painted hot galvanized steel, with |
| Panel: |
1.0mm thick, φ 50mm; material is profiled aluminum 6063; the surface is of powder coating or pretreated by |
| Color: |
The color can be chosen with reference to the color swatch cards Compton offers. |
| Suspension rod system: |
φ 8mm screw rod. |
| Perforation: |
—— |
| Integrated system: |

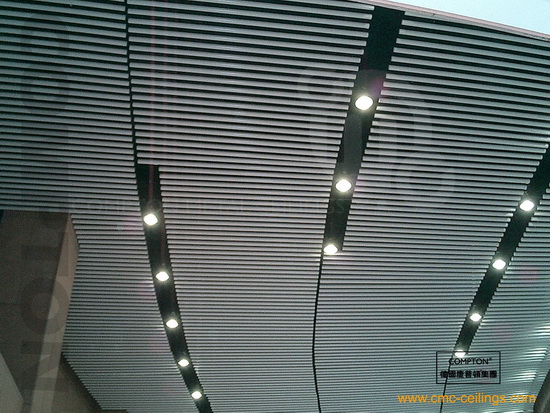

A: It is proposed that the lighting and air-conditioning should be concealed above the ceiling. B: It is proposed that the lighting and air-conditioning should be concealed above the ceiling. Lighting can be |
| Minimum clearance: |
300mm |
| Interval of keel: |
1200mm in the middle, 400mm near the wall. |
| Interval of the suspension rod: |
1200mm x 1200mm |
|
|
|
