| Modle: |
COMPTON-V Type Hanging Blade |
|
|
|
|
| description: |
Ceiling made by continuity surface rolling to ensure stable quality and be fixed in the frame; optional height and clearance space to meet the design requirements; the installed ceiling is clean and complete; easy to install, dismantle and maintain
Cooperating with special fittings, lighting and draft apparatus; optional height, color to meet the requirements of modern designs

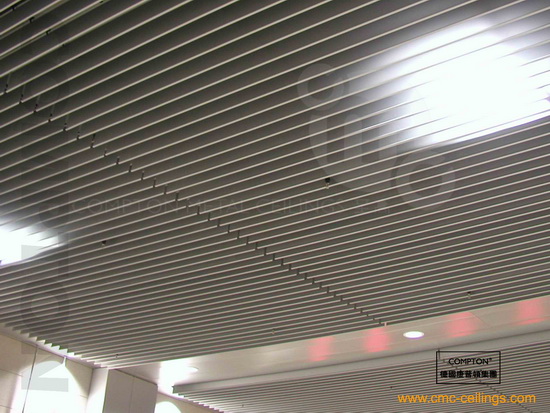

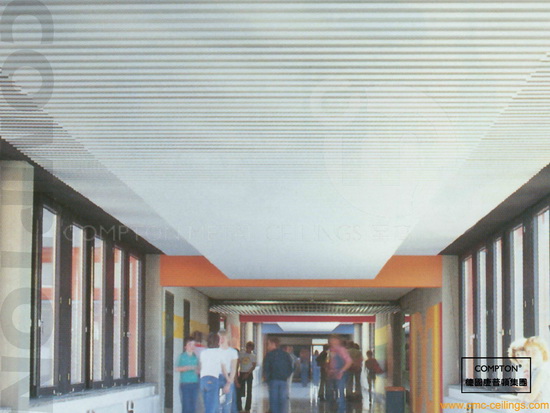

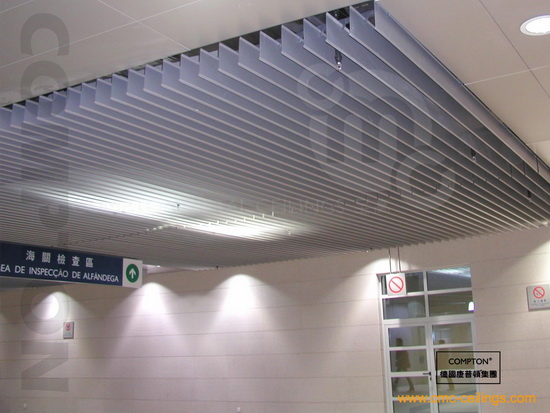

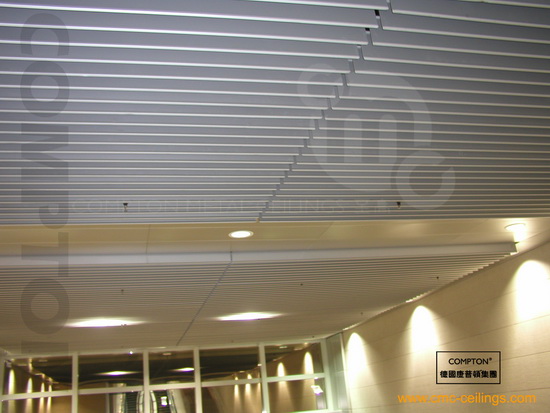

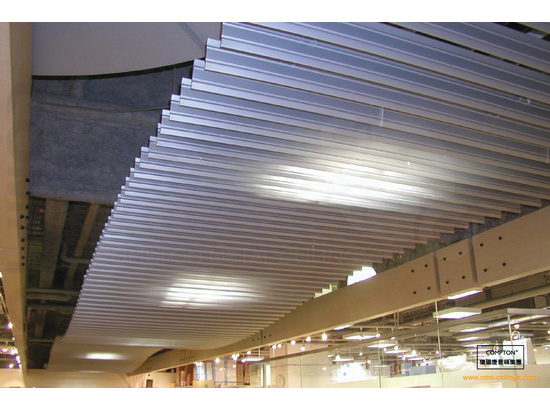

Applicable for subway, airport, stations, shopping malls, corridors/passages and open-style public areas |
| Keel: |
92mm high, 29mm wide, 0.93mm thick, the material is pre-painted aluminum alloy, with the black and white color to choose.module(intervals)100mm,150mm,200mm. |
| Panel: |
0.6mm/0.8mm thick, 100 mm high, 200mm width; the length can be tailor made (maximum 4800mm); material is pre-painted aluminum alloy( pre-roll paint); |
| Color: |
The color can be chosen with reference to the color swatch cards Compton offers. |
| Suspension rod system: |
φ 6mm or φ 8mm screw rod. |
| Perforation: |
—— |
| Integrated system: |
It is proposed that the lighting and air-conditioning should be concealed above the ceiling. |
| Minimum clearance: |
250mm |
| Interval of keel: |
2000mm in the middle, 600mm near the wall |
| Interval of the suspension rod: |
1500mm x 2000mm |
|
|
|
