| Modle: |
COMPTON-85V Strip Ceiling Series |
|
|
|
|
| description: |

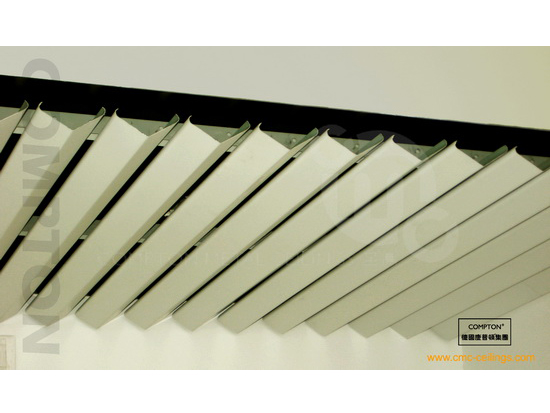

COMPTON-85V Strip Ceiling: irregular surface, appropriate clearance space, distance between plates meeting common building module, easy to install and dismantle, low price, simple and modern
lightweight material for easy transportation, graceful color, good partner of lighting, spray and smoke detector,

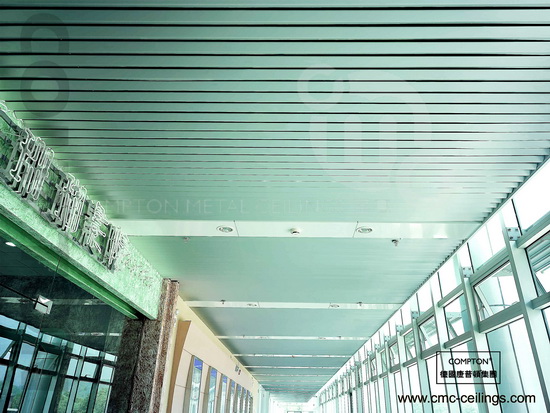

The system is applicable for such crowded places as subway, airport, stations, shopping mall, corridors/passages, small conference rooms and open-style public places.
|
| Keel: |
30mm high, 30 mm wide, 0.7 mm thick, a hem of 5mm; the material is hot galvanized steel; module (interval) |
| Panel: |
0.5mm thick, 38mm high, 85mm wide (a clearance of 15mm between blades); the length can be tailor made |
| Color: |
The color can be chosen with reference to the color swatch cards Compton offers. |
| Suspension rod system: |
φ 6mm or φ 8mm screw rod. |
| Perforation: |
—— |
| Integrated system: |
It is suggested that the side lighting and side ventilation be adopted. It is proposed that the lighting and air- |
| Minimum clearance: |
200mm |
| Interval of keel: |
1200mm in the middle, 300mm near the wall |
| Interval of the suspension rod: |
1200mm x 1200mm |
|
|
|
