| Modle: |

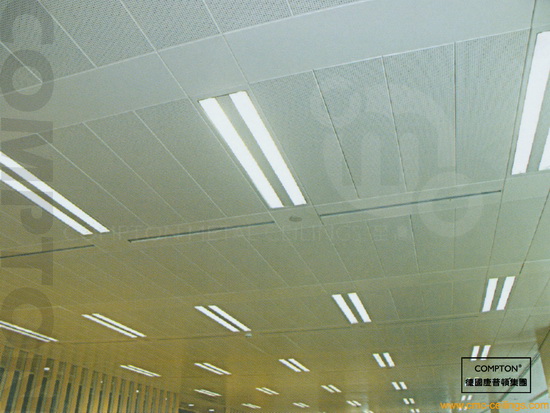

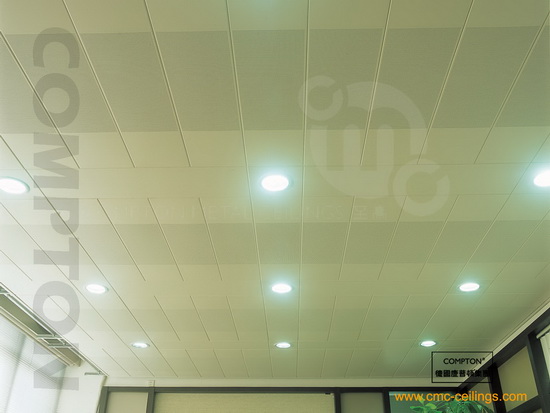

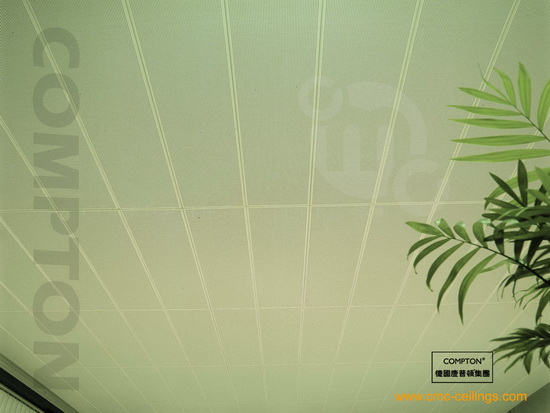

COMPTON-610 Embedded Chip-in Ceiling Series |
|
|
|
|
| description: |
Closed type of ceiling is of simple beauty, adding a modern sense to the interior space. The ceiling adopts closed suspension system, easy to install and knock down, especially flexible to change the partitions of the indoor space. The ceiling tile is of different models to meet different need and various design, applicable to the design of different buildings.
Square tile of ceiling series are fully equipped with all accessories for ceiling lamps and ventilators; soundproof cotton can be furnished to create a perfect harmony. The ceiling tile is cataloged into flat sheet and hole type sheet which is of different percent of hole distribution and design to meet different need.
|
| Main Keel: |
29mm high, 29mm wide, 2.0mm thick, on the two sides there are perforations of different modules to ease the installation and adjustment; the material is hot galvanized steel. |
| Ancillary Keel: |
38.6mm x 16mm, the material is hot galvanized steel . |
| Panel: |
0.8mm thick, 300mm/600mm wide, 300mm/600mm/1200mm long; the material is aluminum alloy 3003; the surface is of powder coating. |
| Color: |
The color can be chosen with reference to the color swatch cards Compton offers. |
| Suspension rod system: |
φ 6mm or φ 8mm screw rod. |
| Perforation: |
φ 2.3mm or plain tile (with Germany Soundtex sound muffling non-woven fabrics on the back). |
| Integrated system: |
It is proposed that the lighting and air-conditioning be integrated with the ceiling system. |
| Minimum clearance: |
300mm |
| Interval of keel: |
1200mm in the middle, 400mm near the wall |
| Interval of the suspension rod: |
1200mmx1200mm |
|
|
|
